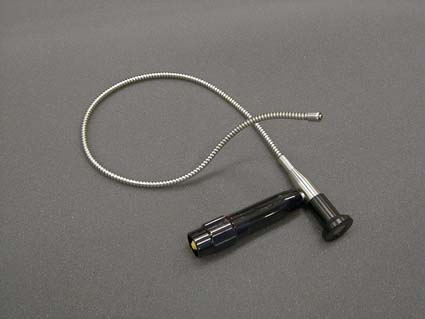

Handy Scope(Handyscpoy)
 |
 |
|
| Industrial Fiberscope Series ●3.0mm Fiberscope HD-A310 ●Ultra thin 0.85mm Fiberscope HD-A8510 |
||
| <Features> ● Easy maintenance and repairs by modular type with detachable lamphouse and eyepleis ● 12000 plxel imageguide provide clear image ●Lamphouse incorporated with a lithium battery ,halogen lamp, taper fiber, Ultra-compact(80grams) and has hight power output. ● Common lightsources can be used to obtain hight power output. ● Monitoring is possible with various imaging system. |
||
| ●Fiberscope | HDA310 | HDE360 | HDA08510 |
| Outar Diameter | 3.0mm | 3.0mm | 0.85mm |
| Working length | 1000mm | 600mm | ,1000mm |
| Observing direction | 0°straight view, | 0°straight view | 0°straight view |
| Type of imageguide | Silica imageguide | ||
| Number of pixels | 12000 | 6000 | 12000 |
| Minimum bending radius | 50mm～30mm | ||
| Depth of vlew | 5mm～∞ | 3mm～∞ | |
| Upper temp.limit | 60℃ |
||
| ● Eyepiece |
|||
| Type | focusing devise | ||
| Forcal length | f=5mm | ||
| ● Lamp house |
|||
| Type of lamp | Halogen LED | ||
| Avarage lifetime of the lamp | Approx.20 | ||
| Type of battery | Lithium battery(CR-123A | ||
| Average lifetime of the battery | Approx, 1 hour of copntinuos use |
||
Expanded System
Can be connected to a light source(available at your local distributor)using a LG extension cord.
Monitor observation,video recording can be made by using TV adapter and CCDcamera or CCD
camera system.Photography oseing reflex camera is possible.
※ At Mitsubishi Cable Industrles.Ltd. order made rigld flberscopes and Various ultra-thin fiberscope are available.
Please feel free to call us.
Ex.)Ultrathin fiberscope with outerdiameter of 0.4mm,rigid scope with 1200 pixels Imageguide,ets.
